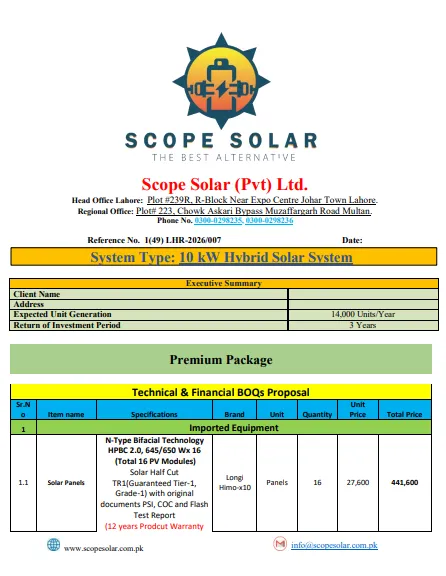

Take your home’s energy capabilities to the highest level with the Scope Solar 10 kW Hybrid Solar System (Premium Package). Built to generate up to 14,000 units annually, this package pairs massive generation capacity with specialized, high-grade materials and enhanced electrical protections to give you the ultimate peace of mind and performance.

Premium Imported Equipment

• High-Efficiency Panels: This system includes seventeen 585 W N-Type Bifacial PV Modules (Guaranteed Tier-1, Grade-1) from industry leaders like Jinko Solar or Longi Himo-7.

• Advanced High-Capacity Inverter: Features a 10 KW Dual Output Hybrid Inverter (GoodWe ES Uniq Series) with a built-in LCD display and Smart Data Logger for intelligent energy routing.

• Reliable Battery Backup: Comes with the Sunwoda Atrix Smart (51.2V, 100Ah, 5.12KWh) battery, featuring a robust 7-year warranty.

Upgraded Cables & Protection

• Superior DC Cabling: Upgraded to high-end 6 sq.mm CU/XLPO/XLPO DC Cables from GM Cables for enhanced safety and optimal energy transfer.

• Premium Breakers: Features specialized Chint AC/DC Miniature Circuit Breakers, a 40KA Surge Protection Device, and a Special Powder Coated metallic DB box designed explicitly by Scope Solar.

Special Initiative Earthing & Lightning Protection

• Lightning Protection: Includes a Guaranteed 100% Pure Copper lightning arrester paired with a dedicated 10 sq.mm flexible grounding cable.

• Deep Grounding Materials: Uses USA Imported ERICO Earthing Powder and two 5-foot Pure Copper Rods (16 mm) for deeply secure grounding.

• Dedicated Earthing DB: Comes with a separate Distribution Box specifically for Earthing Terminal Connectors.

Mounting Structure Options

• Standard Structure: High-grade Aluminum L2 Structure (2.1 mm, 6000 Series in C Channel Profile) secured with standard $1^{\prime}\times1^{\prime}\times1^{\prime}$ civil foundation blocks.

• Elevated Structure: Custom on-site fabrication utilizing heavy-duty H-Beam $(2.5^{\prime\prime}\times5^{\prime\prime})$ and MS U-Channel (14 Gauge), complete with dual-layer enamel paint and epoxy/tarcoal foundation work.

Comprehensive Warranty & Maintenance

• Operation & Maintenance: Enjoy 5 years of free-of-cost O&M services, including regular periodic inspections starting right from the first month.

• Online Monitoring: Benefit from remote 24/7 online tracking through inverter applications and web portals.

• Extensive Warranties: Includes a 30-Year Linear Power output on panels (0.4% annual degradation), a 12-Year manufacturing panel warranty, and a 05-Year replacement warranty on the hybrid inverter.
